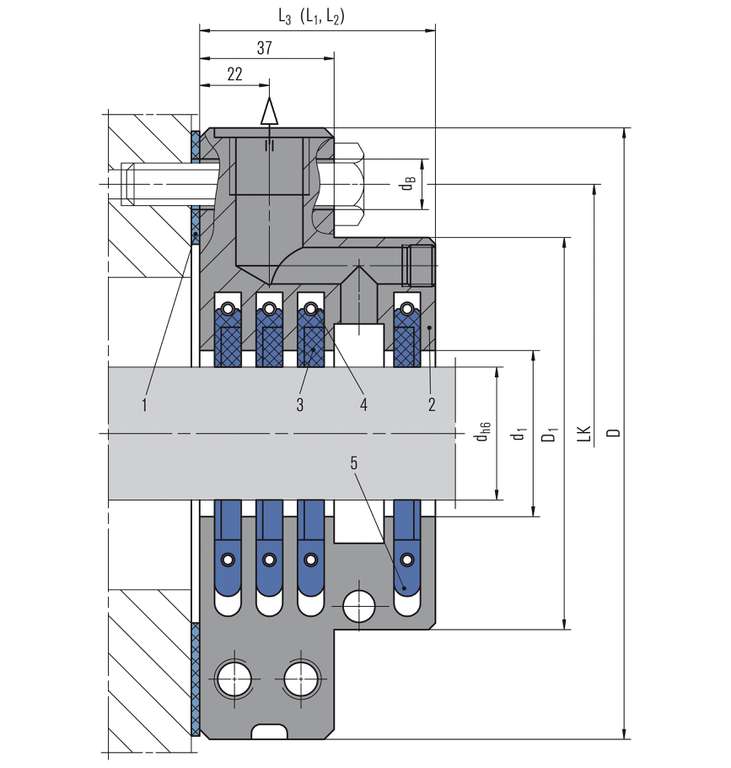

Espey WD500
| Item | Description |
| 1 | Flat seal |
| 2 | Housing, 2-piece |
| 3 | Seal ring |
| 4 | Tension spring |
| 5 | Detent |
Espey WD500
Features
- Multi-part seal rings, overlapped mortised with gas tight Joints (adjusting)
- Split housing design
- Lowest possible operation gap - lowest leakage
- Dry-running
- Self-adjusting seal rings
- Seal rings bear radial shaft movements
- Compensates axial shaft movements
- Short axial installation length
- No sealing components mounted on the shaft and hence no additional shaft vibrations
Advantages
- Easy installation by split housing design (shaft removal not required)
- Long-term operation time
- Maintainability
- Segmented seal rings for easy replacement
Operating range
d = 45 ... 340 mm (1.77" … 13.89")
Operating pressure: p = vacuum ... 3 bar (44 PSI) abs. (depends on peripheral velocity)
Operating temperature: t = -120 °C ... +500 °C (-184 °F … +932 °F) for carbon
[700 °C (1,292 °F) for blast furnaces],
-120 °C ... +150 °C (-184 °F … +302 °F) for PTFE compound
Sliding velocity:
vg = max. 40 m/s (131 ft/s)
Radial play: ± 2.5 … 5.0 mm (± 0.1" … 0.2")
Axial movement: theoretically unlimited
Recommended wear guard: >58 HRC
Materials
Housing: 1.4021, 1.4571, Hastelloy®, Titanium, Inconel®, others
Tension spring / detent: 1.4571, Hastelloy®, Titanium, Inconel®
Standards and approvals
- FDA
Recommended applications
- Chemical industry
- Waste incineration and removal industry
- Pulp and paper industry
- Lime, cement and gypsum industry
- Mining industry
- Water and waste water technology
- CO2 transportation and storage
- Gases
- Fumes and exhaust, solids containing, flammabale (Atex), acid containing and toxic gases
- (Solids containing) steams / liquid mist
- Oil mist / penetrating oil
- Water
- Medium-sized and large fans / blowers
- Bearing seals (gear box, motors)
- Steam turbines
- Mixers, agitators, dryers
- Mills (ball, hammer, beater mills)
- Centrifuges
Product variants

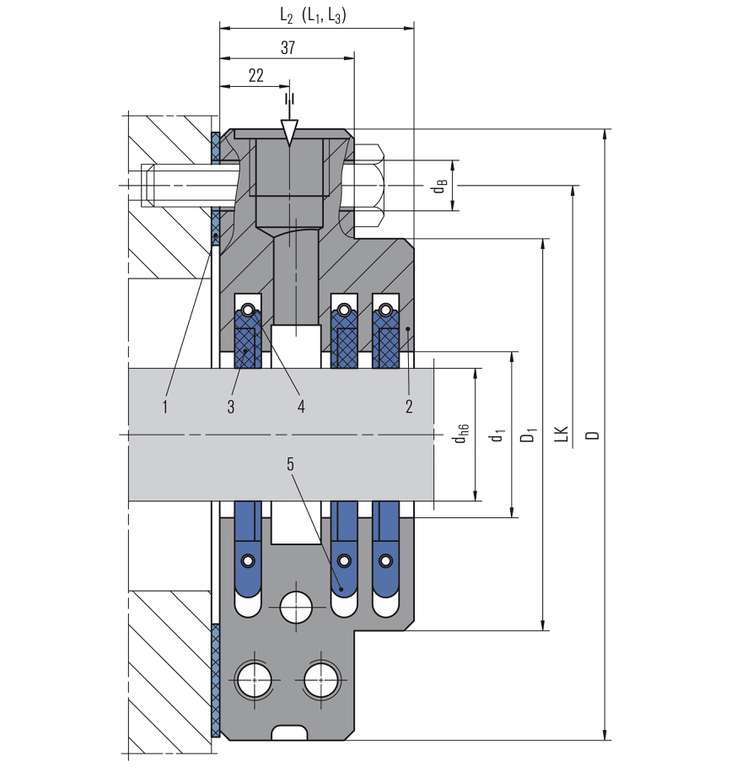

with barrier gas port (for e.g. toxic and solids containing gases).
for applications involving condensate formation to enable directed throwing off to the outside of the housing (not for solids containing gases).

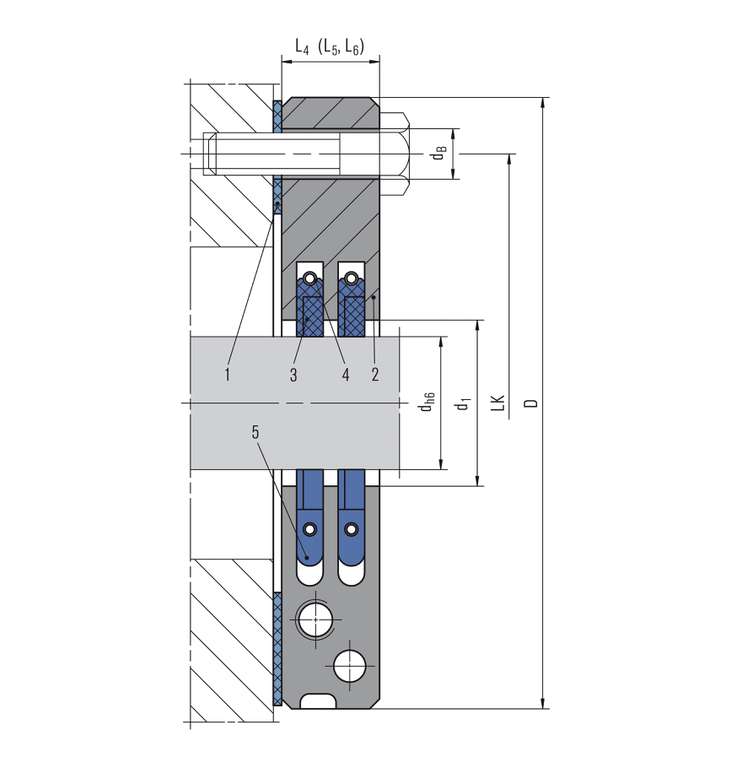

with short design (for clean media, not for solids containing gases).

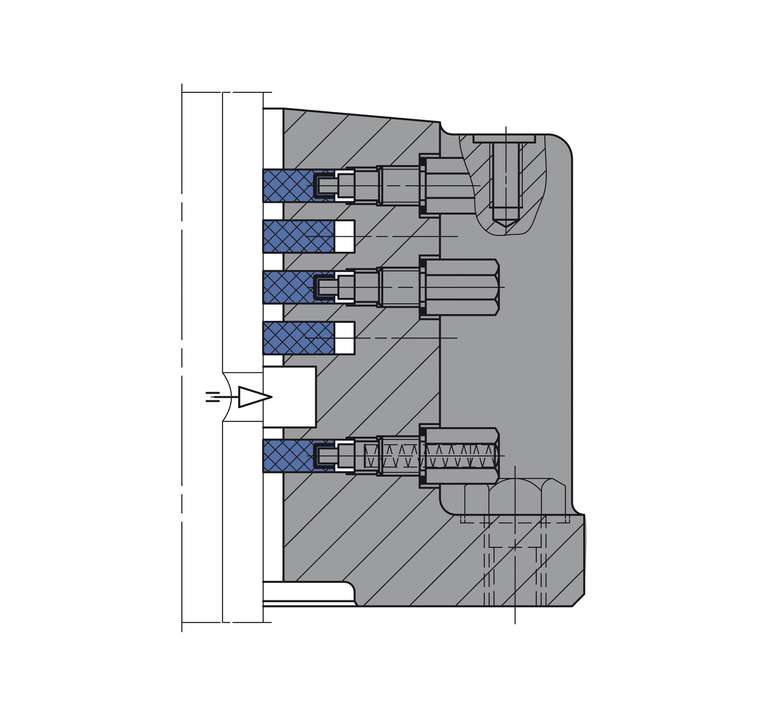

as blast furnace seal

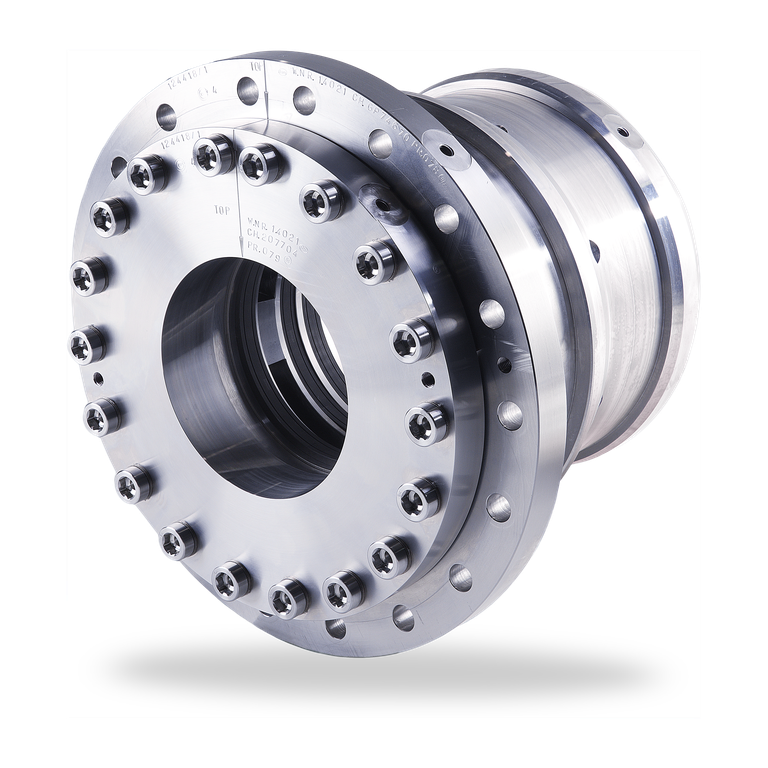

Similar products
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
